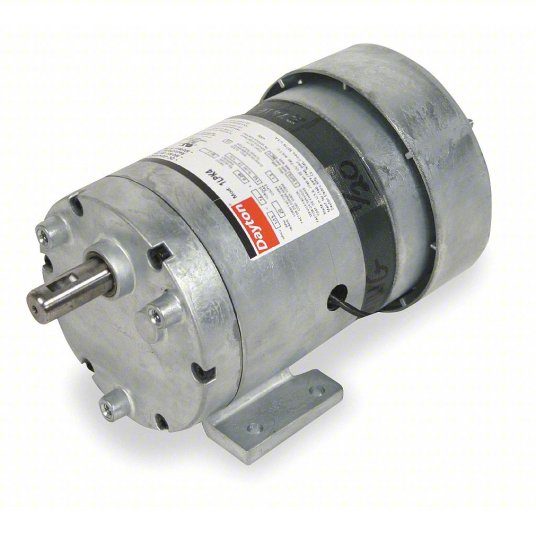

DAYTON AC Gearmotor: Parallel, Single Output Shaft, Shaded Pole, TEFC, 13 RPM, 113 in-lb Max Torque

Product Details

Brand

DAYTON

Manufacturer Part Number

1LPN3

Nameplate Speed

13 RPM

Maximum Torque

113 in-lb

Input Horsepower

0.05 hp

Overhung Load Capacity

150 ft-lb

Phase

Single

Operating Voltage

115V AC

Full Load Current

1.6 A

Rotation

CW

Base to Center of Shaft

3.5 in

Shaft Orientation

Parallel

Number of Output Shafts

1

Motor Type

Shaded Pole

Motor Enclosure

Totally Enclosed Fan-Cooled

Mounting Orientation

Any Angle

Inverter Rated

No

Thermal Protection

None

Motor Insulation Class

B

Maximum Ambient Temperature

104 °F

Gear Ratio

128:1

Gear Material

Acetyl; Steel

Brake Type

None

Output Shaft Diameter

5/8 in

Output Shaft Length

1-1/2 in

Keyway Type

Woodruff

Keyway Width

3/16 in

Keyway Depth

5/8 in

Bearing Type

Ball on Motor; Porous Bronze Sleeve on Case

Seal Type

Lip Type on Output Shaft

Lubrication

Grease Filled

Housing Material

Die Cast Zinc

Housing Material Finish

Unpainted

Mount Type

Any Position

Mount Hole Center-to-Center Width

4 in

Mount Hole Center-to-Center Length

1.5 in

Length Less Shaft

7.5 in

Overall Width

4.63 in

Overall Height

4.72 in

Standards

CSA Certified; UL Recognized

Frequency

60 Hz

UNSPSC

26101603

Country of Origin

USA (subject to change)

Product Description

Parallel shaft AC gearmotors use a gearbox to reduce the input speed from an electric motor, keeping the gearbox output and motor shafts parallel for compact applications.
