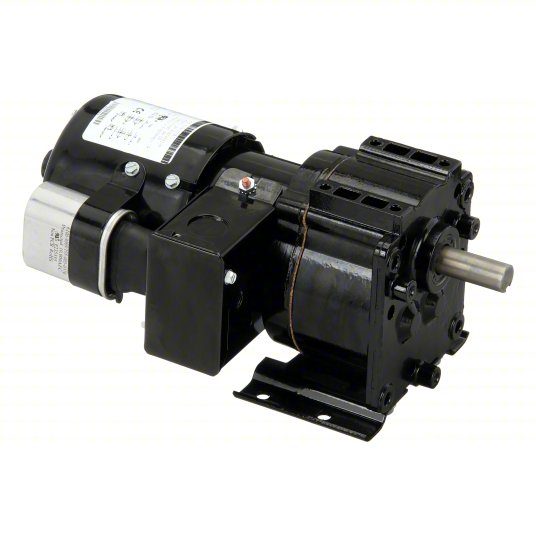

DAYTON AC Gearmotor: Parallel, Single Output Shaft, PSC, TEFC, 15 RPM, 202 in-lb Max Torque, CW/CCW

Product Details

Brand

DAYTON

Manufacturer Part Number

4Z518

Nameplate Speed

15 RPM

Maximum Torque

202 in-lb

Input Horsepower

0.067 hp

Overhung Load Capacity

175 ft-lb

Phase

Single

Operating Voltage

115/230V AC

Full Load Current

1.2/0.63 A

Rotation

CW/CCW

Base to Center of Shaft

3.5 in

Shaft Orientation

Parallel

Number of Output Shafts

1

Motor Type

Permanent Split Capacitor

Motor Enclosure

Totally Enclosed Fan-Cooled

Mounting Orientation

Any Angle

Inverter Rated

No

Thermal Protection

None

Maximum Ambient Temperature

104 °F

Capacitor Required

Yes

Includes Capacitor

Capacitor Included

Gear Ratio

107:1

Gear Type

Helical (1st Stage); Spur (Subsequent Stages)

AGMA Gear Class

Class 9

Gear Material

Hardened Steel

Brake Type

None

Output Shaft Diameter

5/8 in

Output Shaft Length

1-1/2 in

Keyway Width

3/16 in

Keyway Depth

1/8 in

Bearing Type

Ball on Motor; Heavy Duty Needle Roller and Thrust Balls on Case

Seal Type

Lip Type on Input and Output Shaft

Lubrication

Permanent Heavy Duty Gear Oil

Housing Material

Die Cast Aluminum

Mount Type

Any Position

Mount Hole Center-to-Center Width

4 in

Mount Hole Center-to-Center Length

1.5 in

Length Less Shaft

8.75 in

Overall Width

5.5 in

Overall Height

5.13 in

Standards

C-UL Recognized; CE Certified; UL Recognized

Frequency

50 Hz; 60 Hz

UNSPSC

26101602

Country of Origin

USA (subject to change)

Product Description

Parallel shaft AC gearmotors use a gearbox to reduce the input speed from an electric motor, keeping the gearbox output and motor shafts parallel for compact applications.
